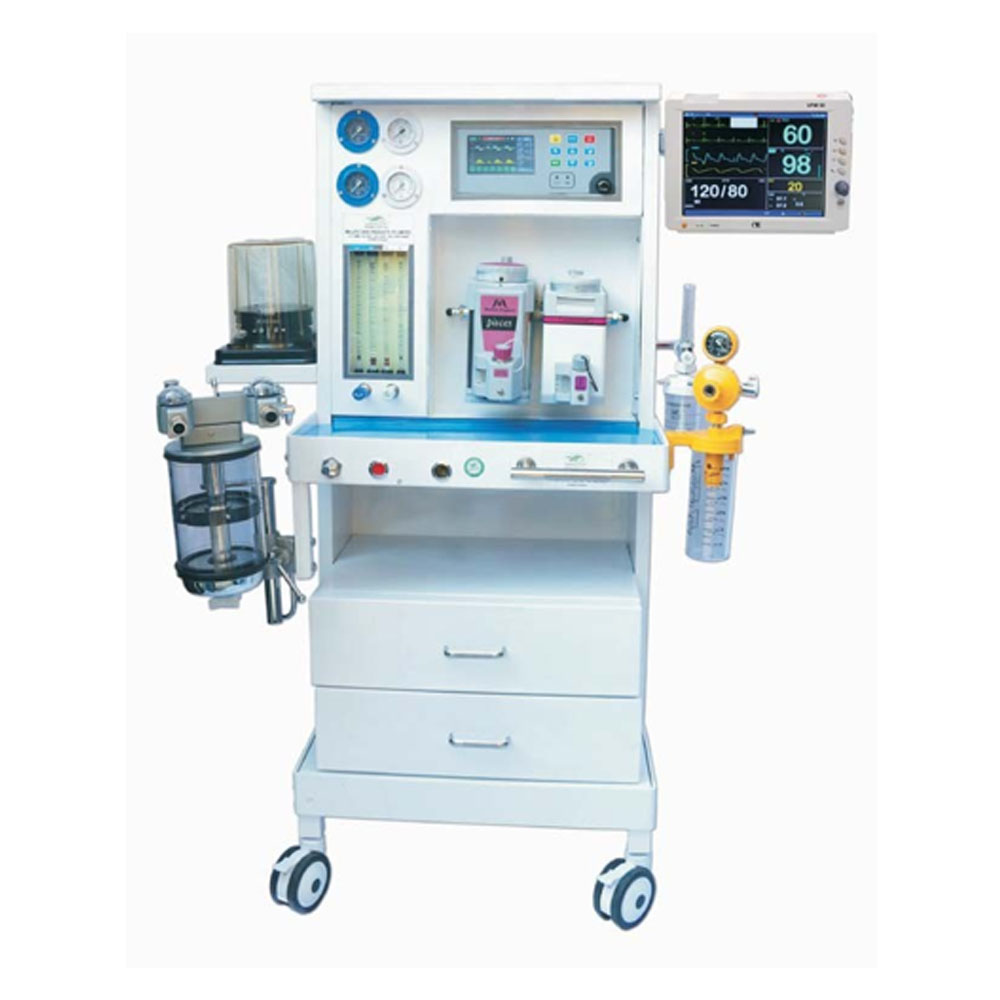

ULTIMA 1 Anaesthesia Workstation

VENTILATOR (Volume Control)

Alveo-VENT AV 180 is a Microprocessor based pneumatically operated, Volume and Time Cycled. Electronic control Anesthesia Ventilator. Alveo VENT AV 180 is a user friendly Anesthesia ventilator and suitable for adult and pediatric patients. Alveo-VENT AV 180 has a 5′ LCD display with FIO2 monitor volume and pressure graphs. This model has a lithium-ion battery back-up for 2 hour. Alveo Vent AV160 can be operated in IPPV, SIMV, PLV, BAG and stand by modes. Alveo VENT AV 180 is compatible with all types of Anesthesia Machines.

26 people are viewing this right now

Description
Reviews(0)

Specifications

Display	7″ TFT Touch Screen
Mode of Operation	CMV, ACMV, SIMV, PLV, BAG
Tidal Volume	50 to 1500 ml
Respiratary Rate	6 to 40 BPM
SIMV	1 to 39 BPM
I:E Ratio	4:1, 1:4
Plateau	0 to 50%
Trigger	1 to 9 cmH2O
Pressure Limit	20 to 60 mBar
Alarms	Pressure Low and High, RR Low and High, FIO2 Lowand High, Active patient, Driving Gas Failure, low battery indication, Circuit Disconnect, Minute Volume Low and High
Monitoring Factors	Tidal Volume, Minute Volume, RR, FIO2, PEEP
Power Input	90 to 260V AC 50/60 Hz
Driving Gas Input	3 Bar Pressure
Sensor Type	Envitec SpiroQuant H
Patient Type	Adult and Pediatric
Battery Backup	2 Hours (Lithium-ion)
