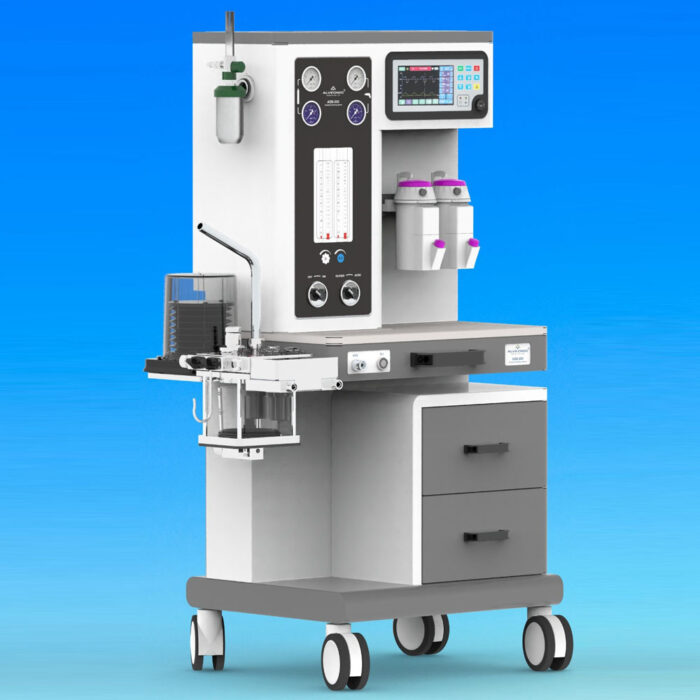

Name: AVS-270 + 2G
SKU: 4313
Availability: InStock

AVS-270 + 2G

Original price was: ₹450,000.Current price is: ₹410,000.

5 products sold in last 3 hours

Selling fast! Over 9 people have in their cart

30 people are viewing this right now

Parameter	Specification / Features
Model of Operation	VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG and Standby
Patient Type	Adult and Child (Selectable)
Tidal Volume	50 to 1500 ml
Respiratory Rate	1 to 60 BPM
Of	0.2 to 8.0 Sec
I:E Ratio	4:1 to 1:4
Pi	5 to 60 cmH₂O
PEEP	3 to 30 cmH₂O
Pressure Support	5 to 40 cmH₂O
Timax	0.2 to 8.0 Sec
Plateau	0 to 50%
Trigger	0.5 to 5.0 cmH₂O
Backup RR	6 to 60 BPM
Backup Mode	VCMV, V-SIMV, PCMV, P-SIMV and PRVC
Fresh Gas Decoupling	Enable
Flowmeter Type	2 Gas (4 Tube Flow Meter)
Display	7″ TFT with Touch Screen
Monitoring Parameters	Tidal Volume, Minute Volume, RR, FiO₂, Pi, P Mean, P Plat, PEEP Obtained
Alarms	Low and High for Pressure, RR, Minute Volume and FiO₂ Active Patient, Patient Disconnected Driving Gas Failure, Low Battery Indication, Apnea.
Graph Types	Flow, Pressure & Volume (Selectable Any Two)
Loop Types	Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure (Selectable Any Two)
Flow Sensor	Internal & Permanent
Power Input	65 W
Driving Gas	Oxygen (Input Pressure: 3~6 Bar)
Battery Backup	2 Hours (Lithium-ion)
