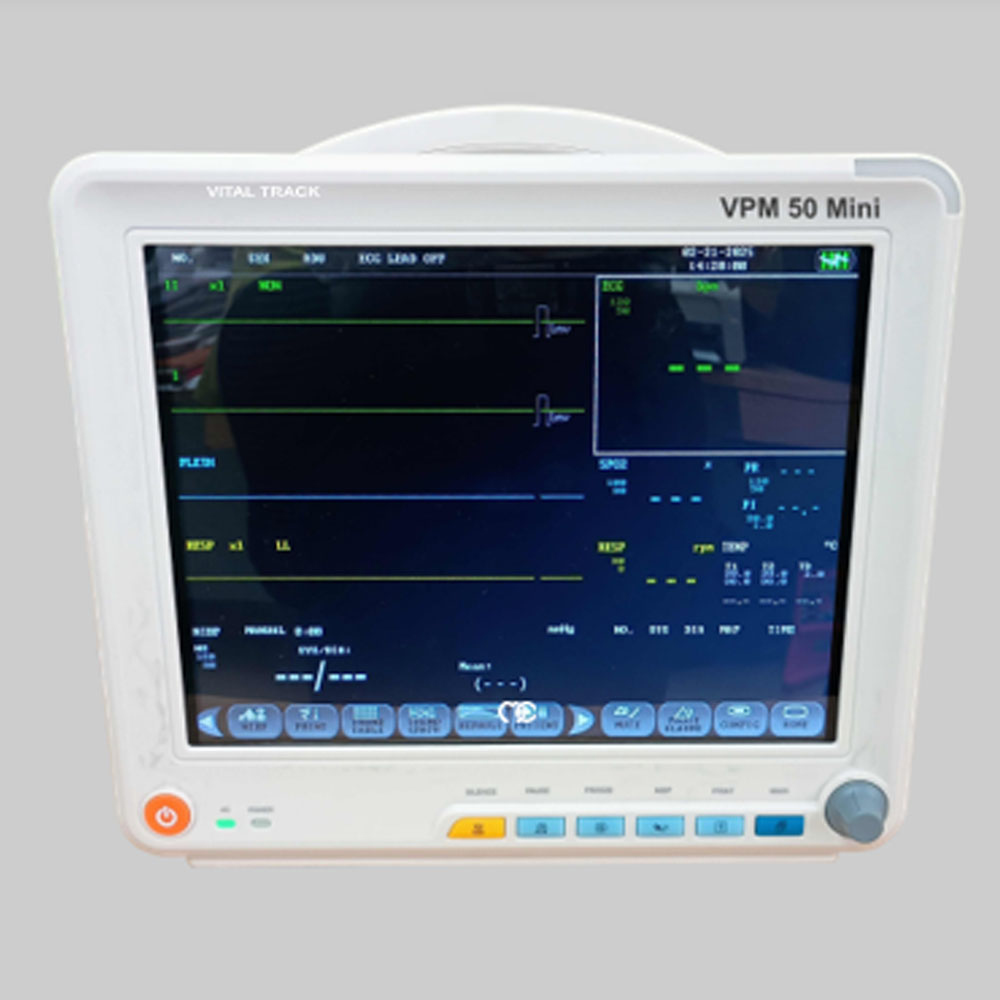

VPM 50 Mini
6 products sold in last 12 hours
Selling fast! Over 9 people have in their cart
Features

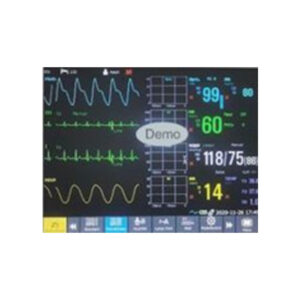

- 12.1” Color TFT with multi channel waveforms display
- Light Weight, Easy to carry, suitable for ambulance center
- Easy connecting with central monitoring system (Optional)
- 90 Hours Data Storage
- Simple & Easy operation
- Suitable for adult, pediatrics and neonates
- Standard parameters : 3/5 Lead ECG, SpO2, NIBP, 2-Temp, PR, Respiration
21 people are viewing this right now
Technical Specification
ECG |
|
|---|---|
| Electrode | 3 or 5 Leads |
| Display | 5 Waveforms with HR |
| Lead | I, II, III, aVR, aVL, aVF, V (5 Lead) I, II or III (3 Lead) |
| Gain Selection | x1/4, x1/2, x1 and x2 |
| Frequency Response | Diagnostic: 0.05 to 90 Hz Monitor: 0.5 to 35 Hz Surgery: 1 to 15 Hz |
| Calibration Signal | 1 mV (p-p), Accuracy: ±5% |
| ECG Signal Range | ±8 mV (Vp-p) |
NIBP |
|
|---|---|
| Technique | Oscillometric During Inflation |
| Range | Adult: 40–270 mmHg Pediatric: 40–240 mmHg Neonate: 40–135 mmHg |
| Measurement Cycle | < 40 sec (Typical) |
| Cycles (Selectable) | 2, 3, 5, 10, 15, 30 min, 1, 2, 4 hr |
| Max. Allowable Cuff Pressure | Adult: 297 ±3 mmHg Pediatric: 240 ±3 mmHg Neonate: 147 ±3 mmHg |
| Resolution | 1 mmHg |
| Transducer Accuracy | ±2 mmHg or ±2% of Reading |
Heart (Pulse) Rate |
|
|---|---|
| Source | User Selectable: Smart, ECG, SpO₂, NIBP |
| Range | Adult: 15–300 bpm Pediatric: 15–350 bpm |
| Accuracy | ±1 bpm or ±1% |
Temperature (2 Channel) |
|
|---|---|
| Range, Accuracy | 0–50°C ±0.1°C |
| Display Resolution | ±0.1°C |
| Probe | YSI 400 and YSI 700 Series |
Respiration Rate |
|
|---|---|
| Rate | Adult: 0–120 rpm Neo / Ped: 0–150 rpm |
| Resolution | 1 rpm |
| Accuracy | ±2 breaths/min |
Trends |
|
|---|---|
| Memory | 96 Hours at 30-second intervals for a NIBP reading every 5 minutes |
| Display | Tabular, Graphical |
Pulse Oximetry |
|
|---|---|
| Range | 0–100% |
| Resolution | 1% |
| Accuracy | 70%–99% Range: ±2% 0%–69%: Undefined |
| Method | Dual Wavelength LED |
General |
|
|---|---|
| Dimensions | 200 (L) × 100 (W) × 200 (H) mm |
| Weight | 1.5 kg |
| Power | AC 100–240 V, 50/60 Hz |
| Power Consumption | 35 W |
| Battery | 14.8 V / 2200 mAh Li-Ion |
| Recharge Time | 4.5 Hours |
| Operating Time | 3 Hours (Typical) |
Standard Accessories |
|
|---|---|
| Finger Probe | 1 No. |
| Mains Cable | 1 No. |
| Cuff (Adult) | 1 No. |
| 5 Lead ECG Cable | 1 No. |
| Temperature Probe | 1 No. |
