ADS-300 (Alveonic)

Name: ADS-300 (Alveonic)
SKU: 3986
Availability: InStock

Original price was: ₹499,000.Current price is: ₹462,000.

9 products sold in last 2 hours

Selling fast! Over 15 people have in their cart

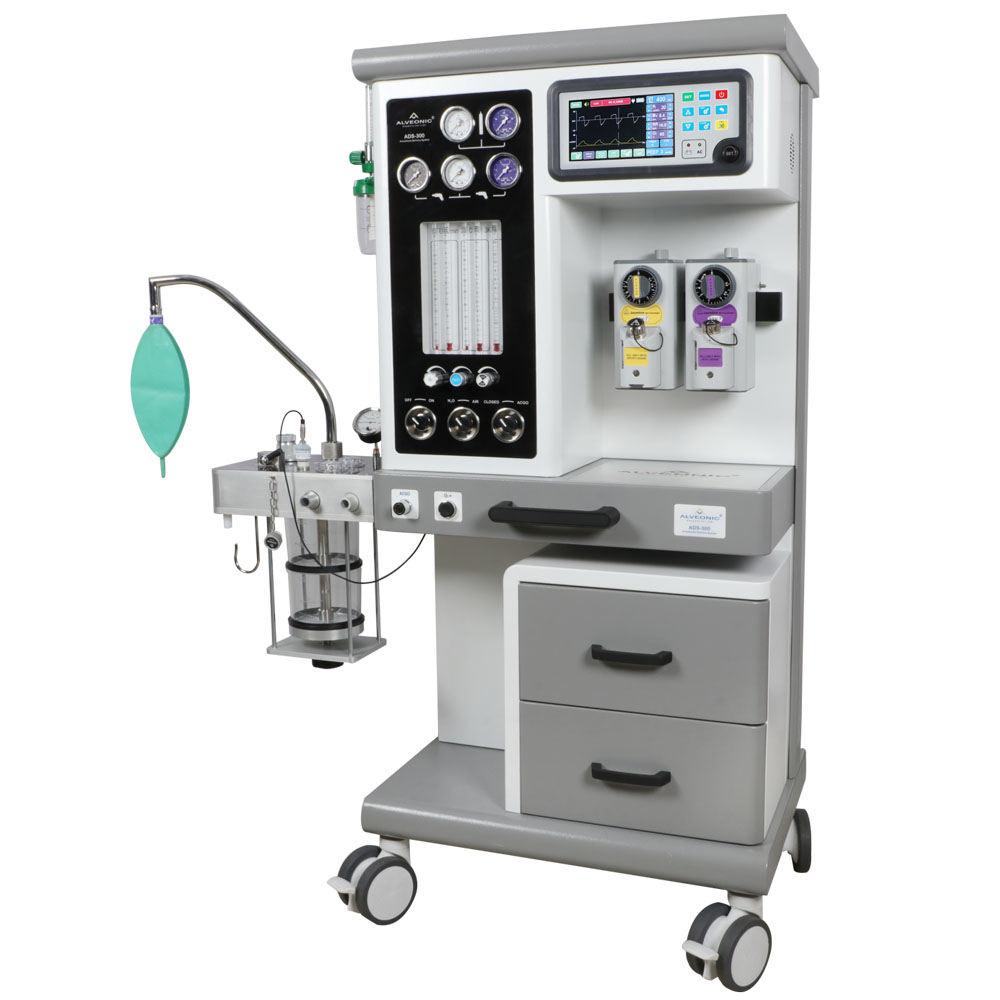

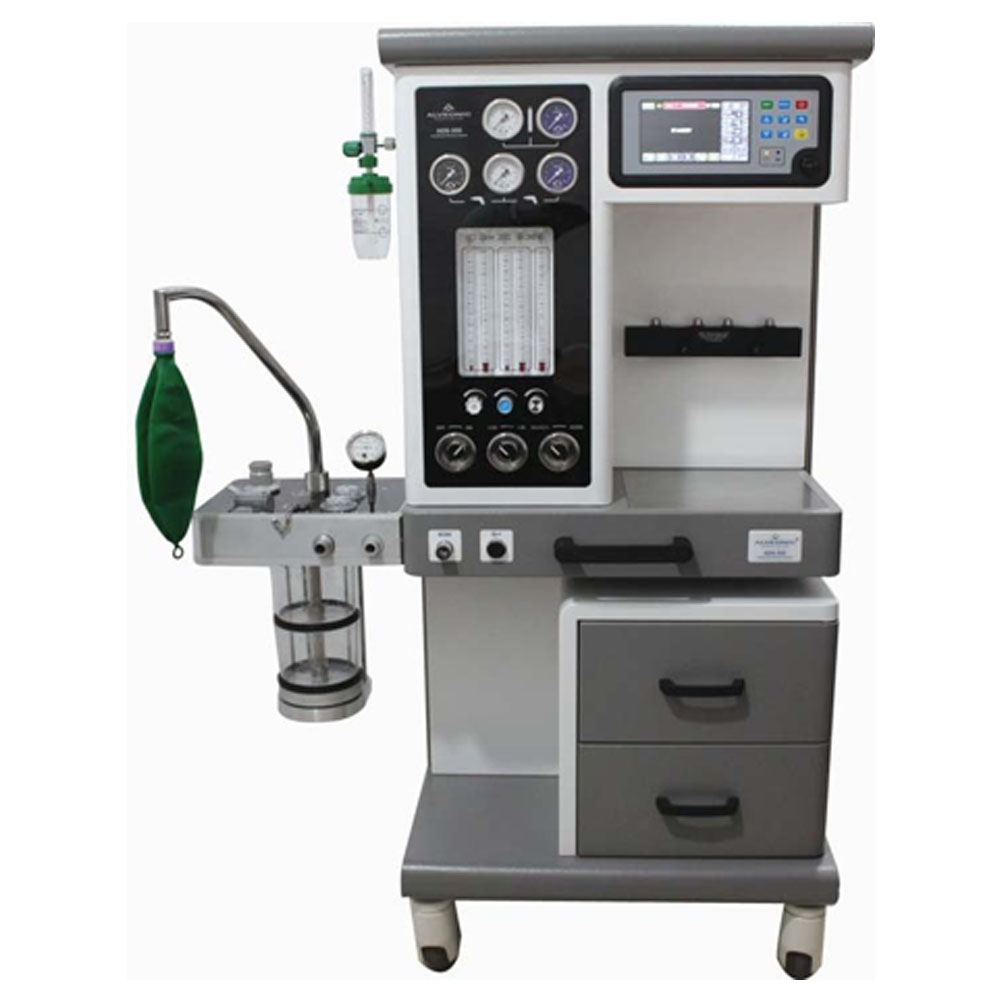

The ADS-300 is a sophisticated anesthesia delivery system featuring an integrated microprocessor-based anesthesia ventilator and gas administrator. Designed for user-friendly operation, the ADS-300 is suitable for both adult and pediatric patients. Its 7-inch TFT touchscreen display provides clear visuals of flow, volume, and pressure graphs. The integrated ventilator incorporates electric-driven bellows, eliminating the need for driving gas. Additionally, a lithium-ion battery ensures reliable operation for up to 2 hours. The ADS-300 is equipped with a high-accuracy 3-gas, 5-tube rotameter with an anti-hypoxic device and a standard Select-a-Tek bar for twin vaporizers.To enhance safety, the system incorporates Fresh Gas Compensation and Fresh Gas Decoupling features. These functionalities contribute to more reliable and secure anesthesia delivery.

23 people are viewing this right now

Description
Reviews(0)

Specifications

Control Parameters
Mode of Operation	VCMV, V- SIMV, PCMV, P-SIMV, PRVC, PSV, BAG and Standby.
Patient Type	Adult and Child [Selectable]
Tidal Volume	50 to 1500 ml.
Ti	0.2 to 8.0 Sec
Pi	5 to 60 cmH₂O
Respiratory Rate	1 to 60 Bpm
Plateau	0 to 50%
PEEP	0 to 30 cmH₂O
Pressure Support	5 to 40 cmH₂O
Trigger	0.5 to 5.0 cmH₂O
Backup RR	6 to 60 Bpm
Backup Mode	VCMV, V- SIMV, PCMV, P-SIMV and PRVC
Alarms and Indications
Monitoring Parameters	Tidal Volume, Minute Volume, RR, FIO₂, Pi, PEEP Obtained.
Loop Types	Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure [Selectable Any Two].
Graph Types	Flow, Pressure & Volume [Selectable Any Two].
Inspiratory Pressure High	10 to 60 cmH₂O
Inspiratory Pressure Low	5 to 15 cmH₂O
Minute Volume High	3 to 50 Liters
Minute Volume Low	0.1 to 47 Liters
RR High	15 to 100 Bpm
RR Low	5 to 90 Bpm
FIO₂%	21 to 100
Alarms	Low and High for Pressure, RR, Minute Volume and FIO₂, Active patient, Patient disconnected, Oxygen Pressure Low, low battery indication, Apnea.
General Parameters
Display	7″ TFT with touch Screen.
Power Input	50 W \| 90 to 260 V AC \| 50/60 Hz
Pipe Line Inlet O₂, N₂O & Air	2.4~6 Bar
Cylinder Inlet O₂ & N₂O	150 Bar Max
Battery Backup	2 hours (Lithium-ion)
