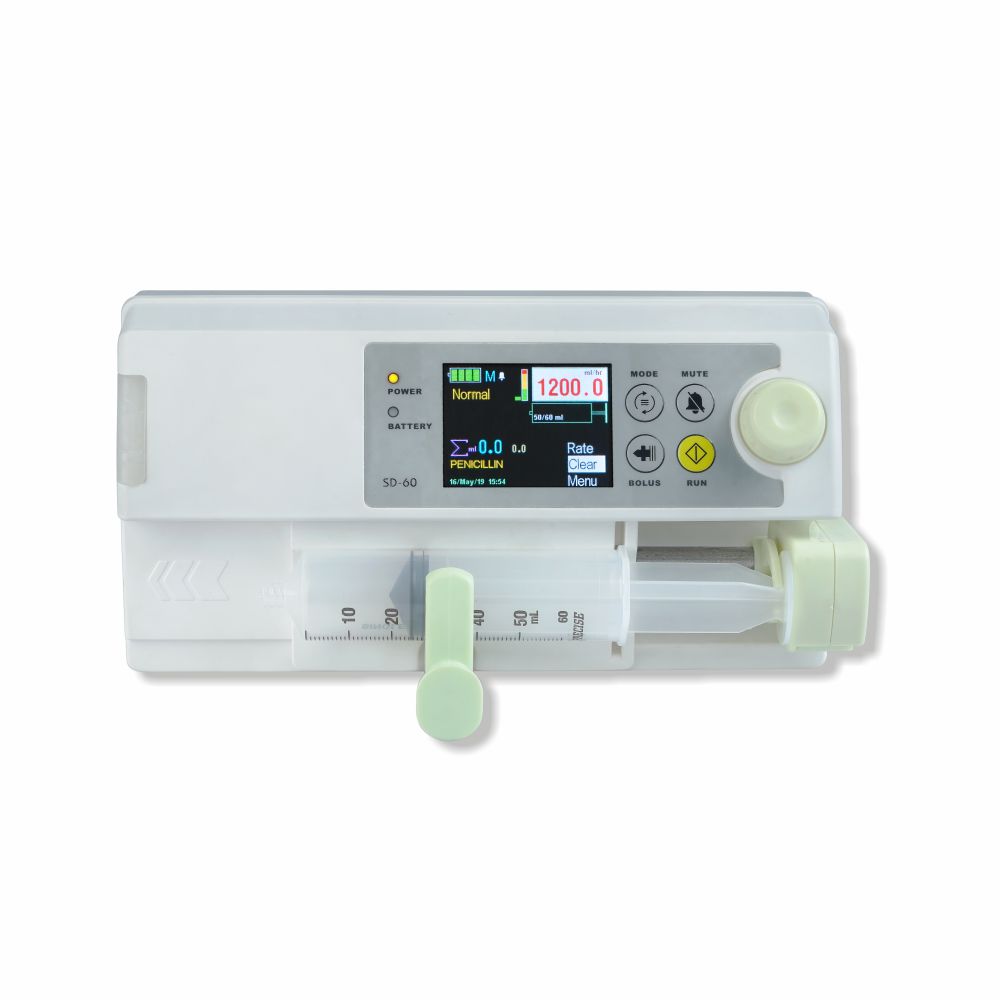

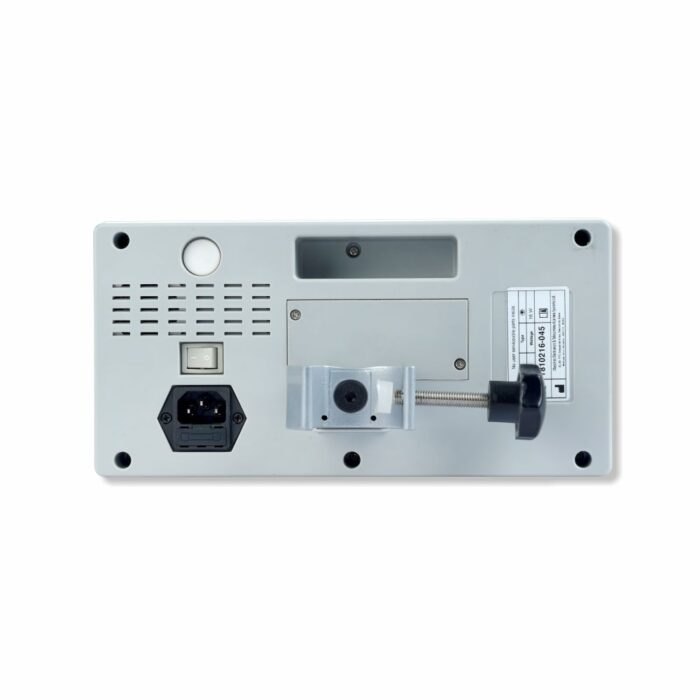

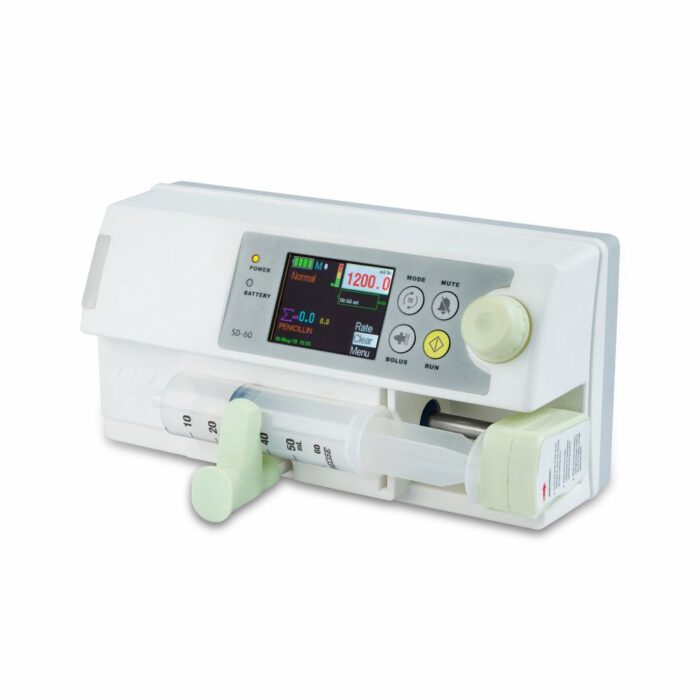

SD 60

Name: SD 60
SKU: 4035
Availability: InStock

Original price was: ₹26,000.Current price is: ₹22,050.

15 products sold in last 1 hour

Selling fast! Over 15 people have in their cart

20 people are viewing this right now

Infusion Performance
Pusher Type	Manual
Infusion Modes	Rate, Weight, Dose Time, Time Optional: Micro-dose
Syringe Sizes	1 mL (Optional), 2 mL, 3 mL, 5 mL, 10 mL, 20 mL, 30 mL, 50/60 mL Automatic detection of syringe size and proper fixing
Syringe Brands	Preloaded with common syringe brands; users can add custom brands as needed
Flow Rate Range	1 mL: 0.01–50 mL/h 2/3 mL: 0.01–150 mL/h 5 mL: 0.01–300 mL/h 10 mL: 0.01–800 mL/h 20 mL: 0.01–1200 mL/h 30 mL: 0.01–1500 mL/h 50/60 mL: 0.01–2300 mL/h
Accuracy	Flow Rate: ≤ ±1.8% or ±0.005 mL/h (whichever is greater) Bolus Dose: ≤ ±2% or ±0.05 mL (whichever is greater)
Purge/Bolus Volume	0.1 mL to Full Syringe Capacity (1–50 mL)
Preset Volume	0.01–9999.99 mL
KVO Rate	0.1–5.0 mL/h
Occlusion Pressure	75–1050 mmHg, Adjustable in 14 Levels
Max. Pump Pressure	≤ 200 kPa

Electrical
Power Input	100–240 V AC, 50/60 Hz
Inbuilt Battery Type	Li-Ion
Battery Rating	DC 7.2 V, 2600 mAh
Operating Time	≥ 7 Hours @ 7 mL/h (New Fully Charged Battery, Until Low-Battery Alert)

Connectivity
USB Port	Data Upgrade & Export

Display
Type	Color Touchscreen
Size	2.8 Inch

Physical Characteristics
Weight	≤ 1.6 kg (with battery, without accessories)
Dimensions	270 × 155 × 76 mm

General
Drug Library	Basic Version with DERS
Safety	Anti-bolus, Automatic Pressure Release, KVO
Alarm Messages	Power-related: Low Battery, Battery Empty, No Battery, No Power Adaptor Syringe-related: Syringe Detached, Syringe Near Empty, Syringe Empty, No Syringe, Incompatible Syringe Infusion Process: VTBI Near End, Infusion Complete, Occlusion, Reminder, KVO Running, KVO Complete
Storage	Up to 5,000 Entries
IP Rating	IP44
