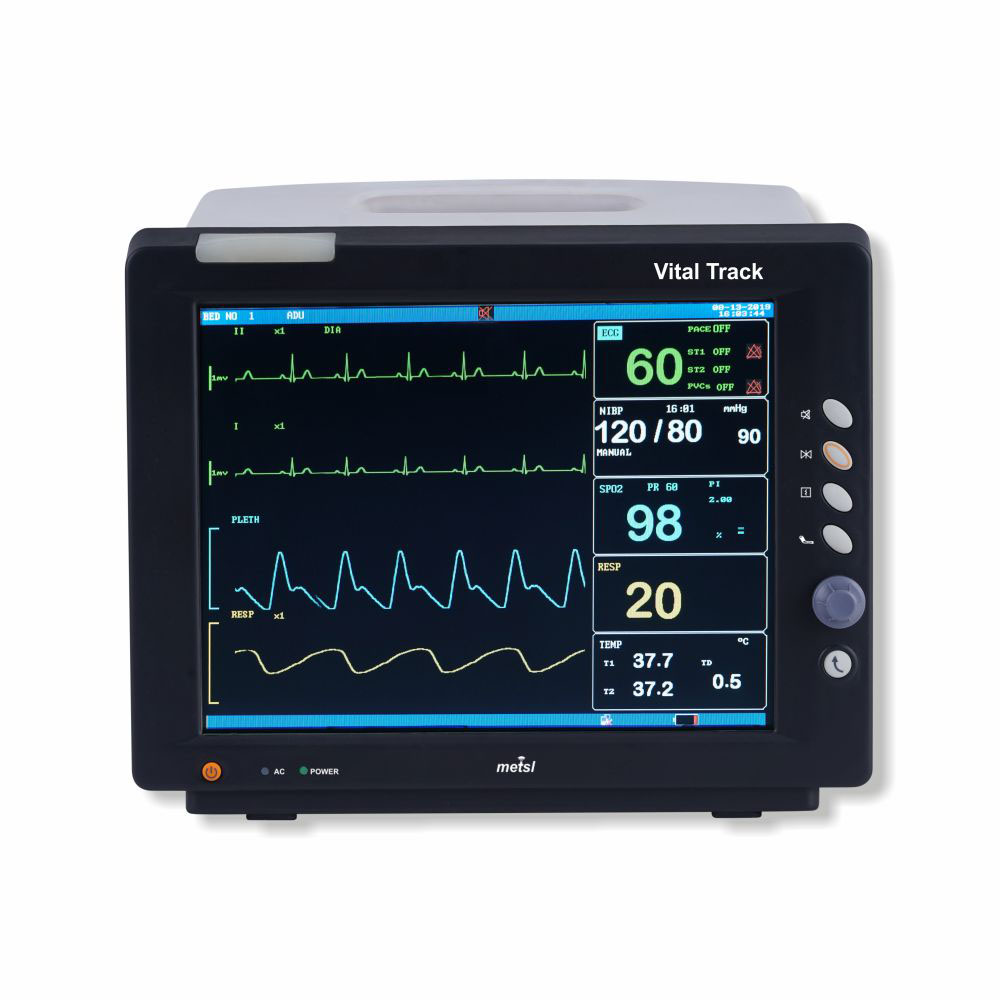

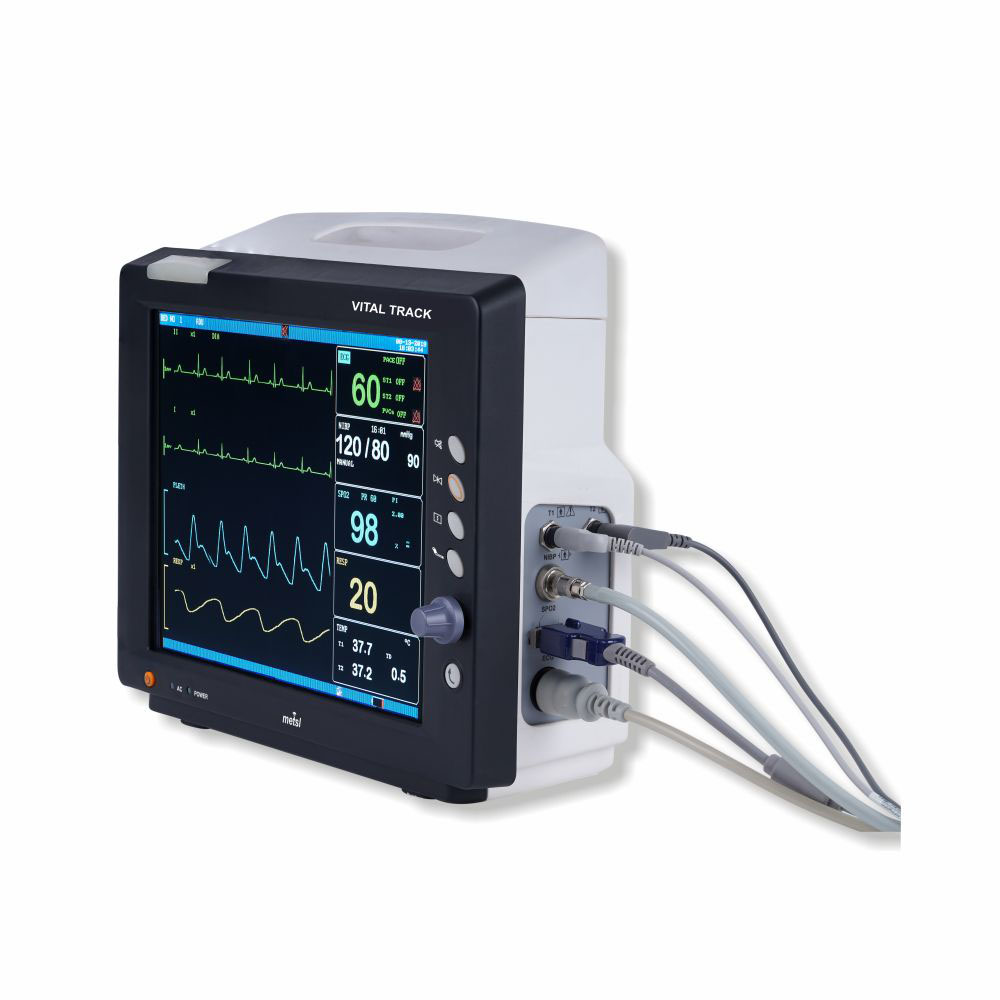

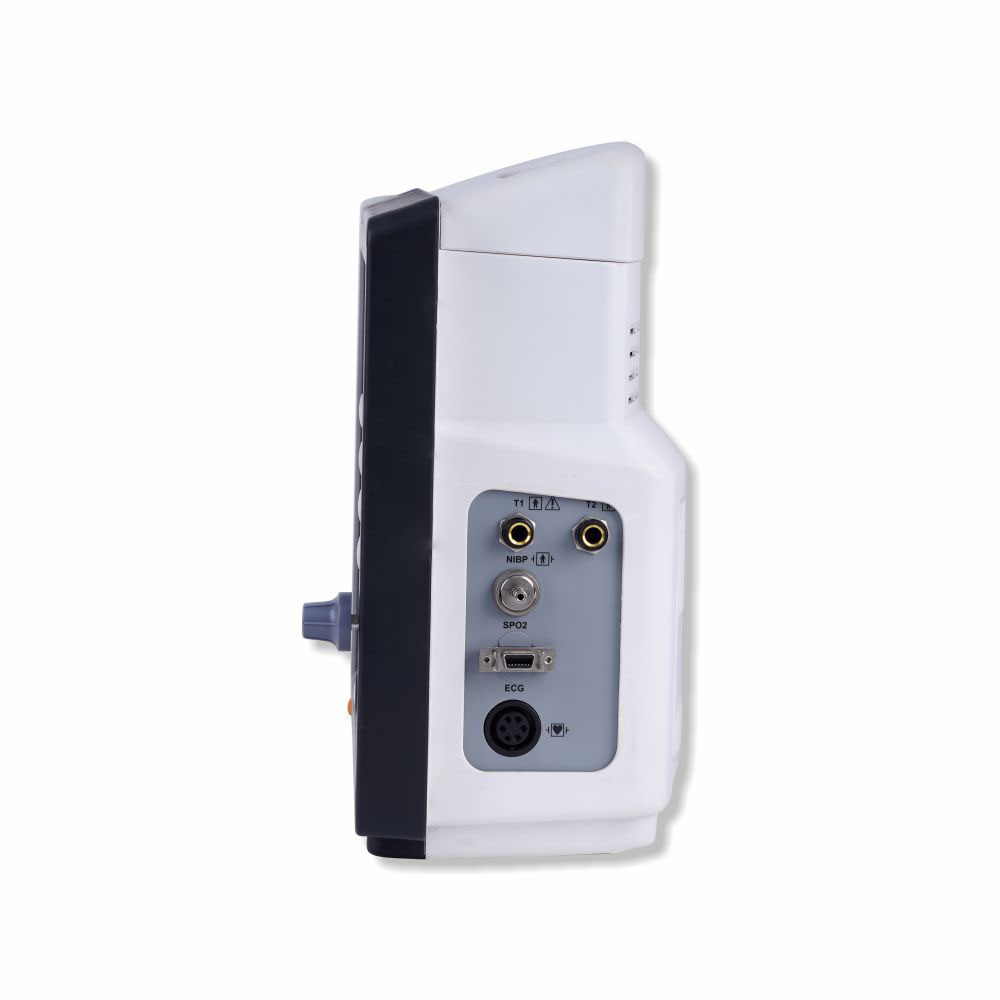

Vital Track
10 products sold in last 6 hours
Selling fast! Over 13 people have in their cart
- 12.1” Color TFT with optional touchscreen
- Multi-screen configuration
- Connectivity with CMS via Wi-Fi
- Suitable for adult, pediatrics & neonates
- Standard parameters : 3/5 Lead ECG, SpO2, NIBP, 2-Temp
- Optional Parameters : EtCo2, 2 IBP, 12 lead ECG & Thermal Recorder
20 people are viewing this right now
Technical Specification
ECG |
|
|---|---|
| Electrode | 3/5 Leads, 12 Leads (Optional) |
| Lead | I, II, III, aVR, aVL, aVF, V (5 Lead) I, II or III (3 Lead) I, II, III, aVR, aVL, aVF, V1-V6 (12 Lead) |
| Gain Selection | x1/4, x1/2, x1 and x2 |
| Frequency Response | Diagnostic: 0.05 to 125 Hz Monitor: 0.5 to 35 Hz Surgery: 1-15 Hz |
| Display Channel | Channels |
| Analysis | ST Segment & Arrhythmia |
| Sweep Speed | Detection 6.25, 12.5, 25 or 50 mm/s |
Trends |
|
|---|---|
| Memory | 200 Hrs at 30 seconds intervals for a NIBP reading every 5 minutes |
| Display | Tabular, Graphical |
Heart (Pulse) Rate |
|
|---|---|
| Source | User Selectable: Auto, ECG, SpO2 |
| Range | 30-240 bpm |
| Accuracy | ±1 bpm or ±1% |
Environment |
|
|---|---|
| Operating Temperature | (100 – 400 C) |
| Storage Temperature | (-50 – 500 C) |
| Humidity | Upto 90% Non-Condensing |
Pulse Oximetry (Nellcor) |
|
|---|---|
| Range | 0 to 100% |
| Resolution | 1% |
| Accuracy |
70% to 99% Range ±1% 40% to 69% Range ±1% |
| Method | Dual Wavelength LED |
IBP (Optional) |
|
|---|---|
| Channels | 2 Nos. |
| Pressure | ART, PA, CVP, RAP, LAP, ICP, P1, P2 |
| Range | 0 to 300 mm Hg |
| Accuracy | ± 2 mm Hg or ± 2% of Reading |
NIBP |
|
|---|---|
| Technique | Oscillometric During Inflation |
| Range |
Adult : 0-300 mm Hg Pediatric : 0-250 mm Hg Neonate : 0-250 mm Hg |
| Measurement Cycle | <40 sec, Typical |
| Cycles (Selectable) | 2, 3, 5, 10, 15, 30 min, 1, 2, 4 hr |
| Max. Allowable Cuff Pressure |
Adult : 297 ±3 mm Hg Pediatric : 240 ±3 mm Hg Neonate : 147 ±3 mm Hg |
| Resolution | 1 mm Hg |
| Mode | Auto, Manual & STAT |
| Transducer Accuracy | ± 2 mm Hg or ± 2% of Reading |
EtCo2 )(Optional) |
|
|---|---|
| Transducer Type | Side Stream / Main Stream |
| Range | 0-150 mm Hg |
| Resolution | 0.1 mm Hg |
| Accuracy |
0-40 mmHg ±2 mmHg 41-70 mmHg ±5% of Reading 71-100 mmHg ±8% of Reading 101-150 mmHg ±10% of Reading |
General |
|
|---|---|
| Dimensions | 320 (L) × 280 (B) × 135 (T) mm |
| Weight | 3.5 Kg |
| Power | AC 100-240V, 50 Hz |
| Power Consumption | 45W |
| Battery | 14.8V / 2600 mAh Li-Ion |
| Recharge Time | 4.5 Hours |
| Operating Time | > 6 Hours Typical |
| Connectivity | Wi-Fi |
| Alarm Silence | 120 Seconds |
| Audio Type |
Adjustable Audio-Visual Alarms for Each Parameter, Sensor/Probe Disconnect, Low Battery |
| Electrical Safety | ESU, Defibrillator Protection |
Temperature (2 Channel) |
|
|---|---|
| Range | 0 – 500C |
| Accuracy | ±1% |
| Display Resolution | ± 0.10C |
| Probe Type | YSI 400 and YSI 700 Series |
Respiration Rate |
|
|---|---|
| Method | Impedance Pneumography |
| Rate |
Adult: 0 ~ 120 bpm Neo / Ped: 0 ~ 150 bpm |
