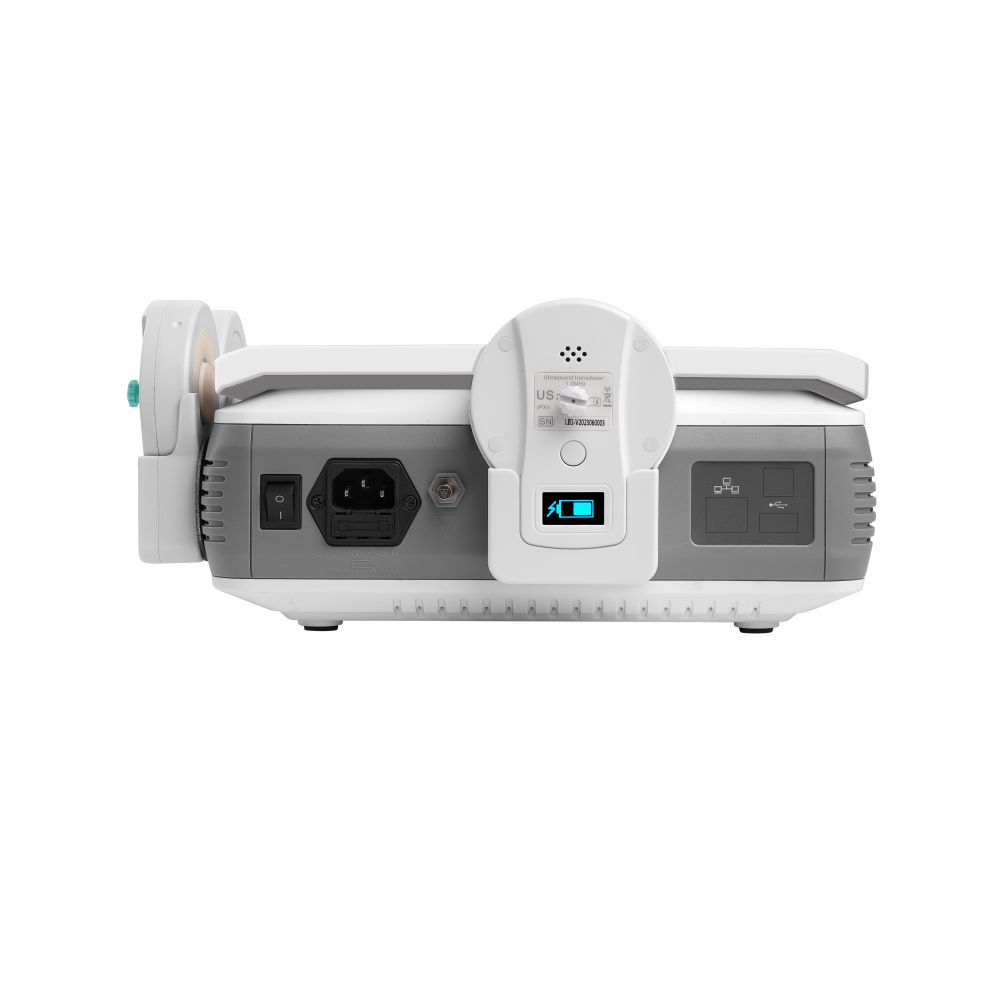

CTG 150 Wireless
2 products sold in last 6 hours
Selling fast! Over 16 people have in their cart
Features
- 7” colour TFT touch screen display
- Auto & manual fetal movement detection
- Automatic analysis facility
- Patient data storage for more than 24 Hours
- Twin monitoring Facility (optional)
25 people are viewing this right now
Technical Specification
Fetal Heart Rate |
|
|---|---|
| Technique | Pulsed Doppler with Autocorrelation |
| Frequency | 1 MHz |
| Measurement Range | 50–210 BPM / 30–240 BPM |
| Intensity | < 10 mW/cm² |
| Scaling | 30 BPM |
| Resolution | 1 BPM |
| FHR Chart Width | 8 cm |
| Battery Operating Time | > 3 Hours |
| Speaker | 5 W |
Uterine Activity |
|
|---|---|
| Technique | Strain Gauge Sensor Element |
| Measurement Range | 0 – 100 Units |
| TOCO Chart Width | 4 cm |
Display |
|
|---|---|
| Display Type | 7 Inch Color TFT |
| Resolution | 800 × 480 |
Operating & Storage Condition |
|
|---|---|
| Operating Temperature | 15°C to 40°C |
| Storage Temperature | 10°C to 50°C |
| Pressure | 50 to 160 kPa |
| Humidity | Up to 90% Non-Condensing |
Recorder |
|
|---|---|
| Type | High Resolution Thermal Printer |
| Chart Speed | 1, 2, 3 cm/min |
| Record Paper | Z-Fold / Thermo-Sensitive Paper |
| Width | 112 mm |
| Memory Storage | > 24 Hours |
| Number of Patients | 99 |
Physical Characterstics |
|
|---|---|
| Weight | 2.5 kg (Approx.) |
| Dimensions | 326 (L) × 224 (W) × 130 (H) mm |
Electrical |
|
|---|---|
| Power Supply |
100–240 V AC, 50 Hz 15 V DC / 4 A, External Adapter |
| Power Consumption | 60 W |
| Inbuilt Battery | Rechargeable 11.1 V, 4400 mAh Li-Ion |
Accesories |
|
|---|---|
| FHR Probe | 1 No. |
| TOCO Probe | 1 No. |
| Event Marker | 1 No. |
| Power Cable | 1 No. |
| Thermal Paper | 1 No. |
| Belt | 2 Nos. |
| Ultrasound Gel | 1 No. |
| Manual | 1 No. |
